Materials & System
Van Interior Materials
Every panel, cabinet and rail we make: what it's made of, how it goes together, and how to pick the right one for your build.
One system, four steps
-
Step 1 · Rivet nuts set the anchor points
Most go into the van's factory holes. A few get opened up or drilled new, all marked by our template, so there's no measuring.
-
Step 2 · Rails bolt to the rivet nuts
CNC-drilled aluminum strut rails, cut and drilled to match your van.
-
Step 3 · Panels drop in between the rails
Each rail captures the panel edges above and below it, so walls and ceiling go up row by row.
-
Step 4 · Everything else mounts to the rails
Cabinets, shelves, beds, hooks and bags use standard ¼-20 hardware, and move later without touching the van.
Rivet nuts hold only the shell
The rivet nuts carry the panels, rails and trim. Your cabinets and gear ride on the rails, so the layout can change as your travels do.
Panel materials
-

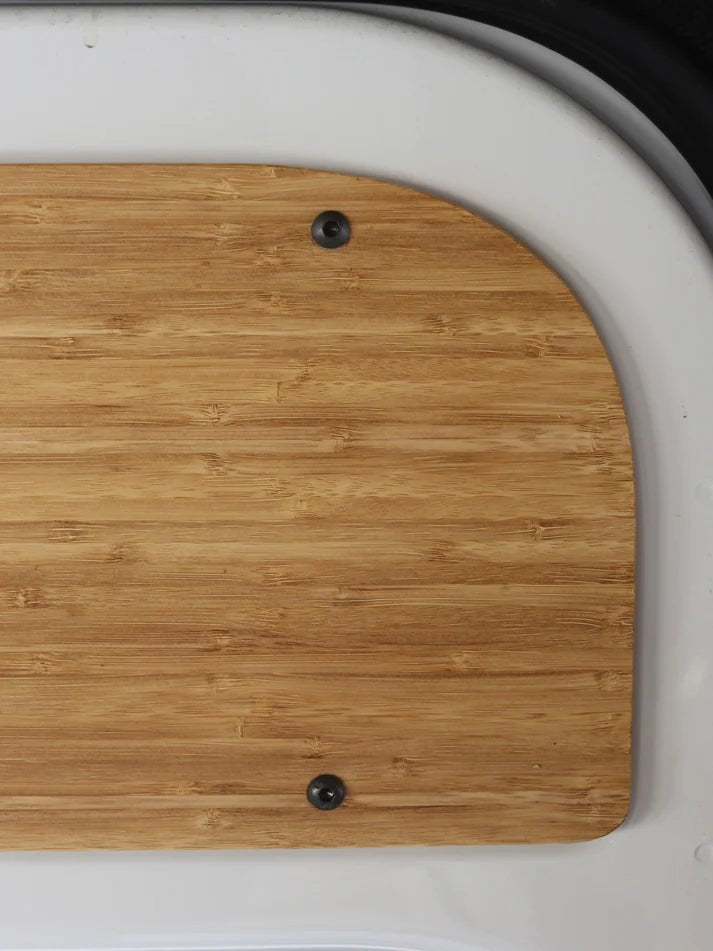

Bamboo
Shop bamboo kitsWarm, amber edge-grain bamboo. The material that makes a van feel like a cabin.
Face: amber edge-grain bamboo
Core: solid bamboo layers
Arrives: raw. Finish with hard wax oil, tung oil or a furniture-grade wood oil
Care: wipe clean once finished; re-sand and refinish over time
Kit from: $4,350 (Sprinter 144)Best for: a warm wood interior you can refinish for years.
-

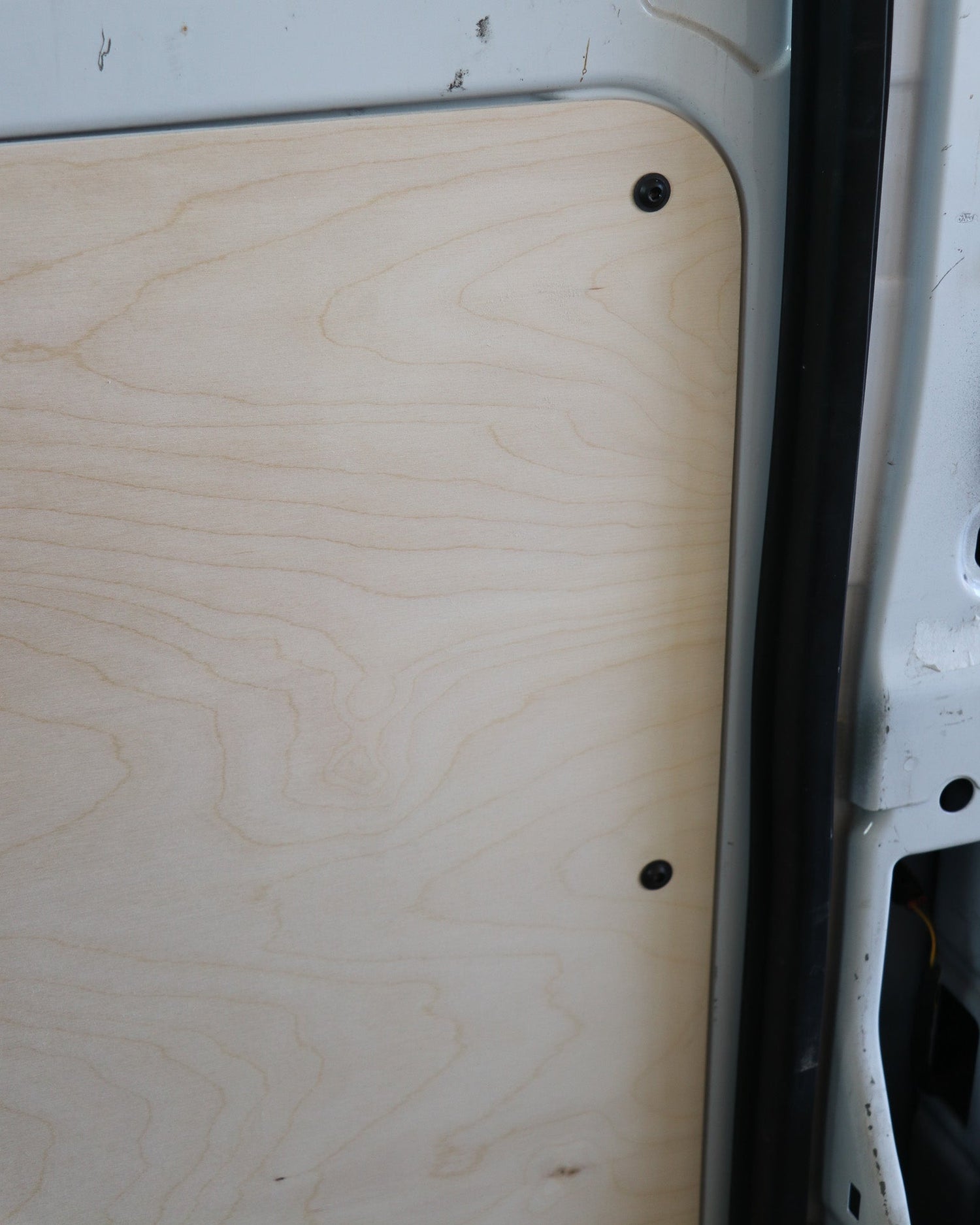

Natural Plywood
Shop natural plywood kitsClean, pale Baltic birch that takes paint, stain, clear coat or upholstery. The blank canvas.
Face: raw birch veneer
Core: Baltic birch plywood
Arrives: raw. Sand and finish (paint, clear coat, stain and poly, hard wax oil), or upholster it
Care: depends on your finish; keep it dry until finished
Kit from: $3,000 (Sprinter 144)Best for: your own color, stain or upholstery, and the lowest cost.
-

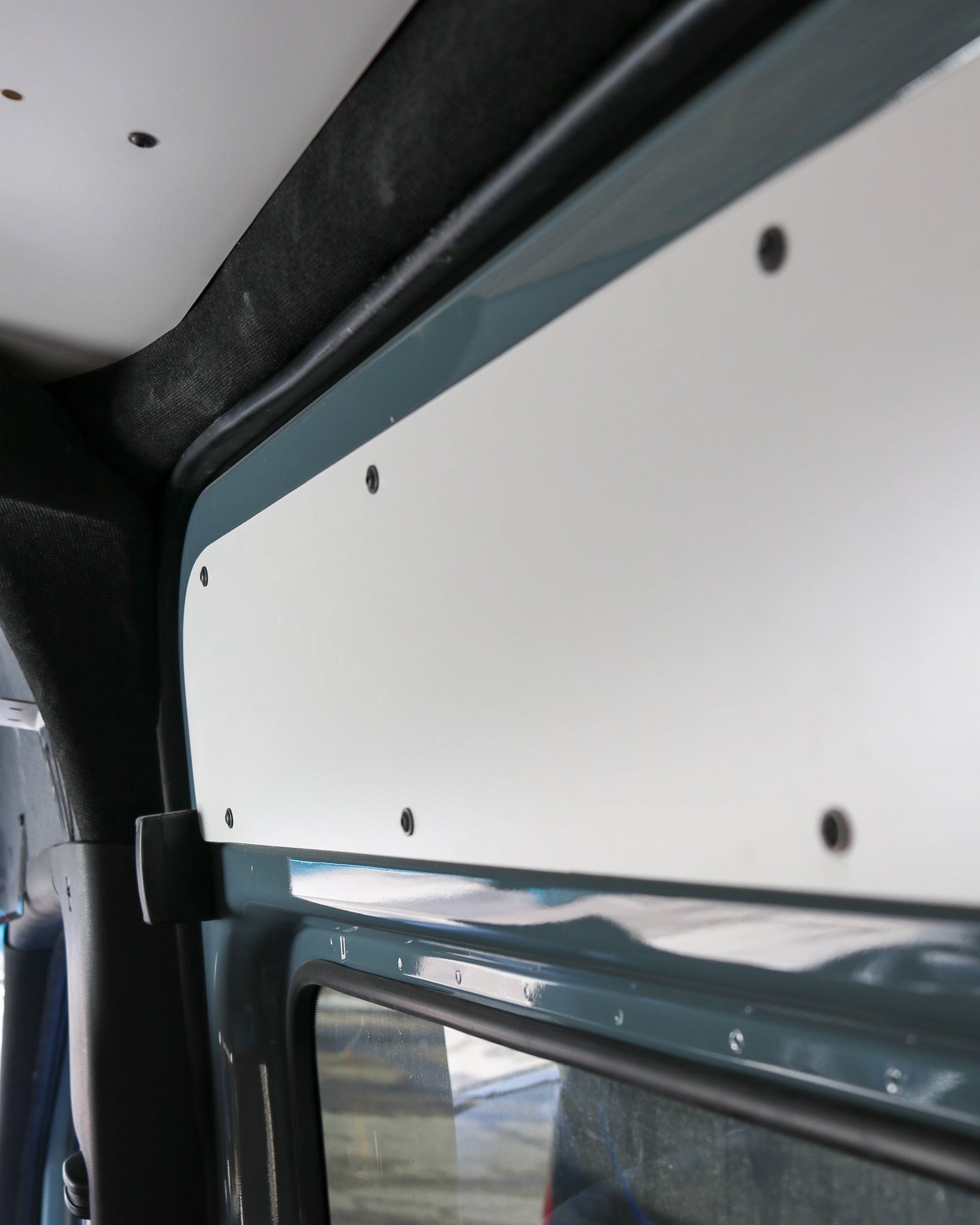

White Laminate
Shop white laminate kitsBright, clean, and ready the day it arrives.
Face and back: white high-pressure laminate
Core: Baltic birch plywood
Arrives: finished
Care: household cleaners are fine; skip scouring pads; wax the raw edges for water resistance
Lead time: adds 10–12 business days
Kit from: $4,600 (Sprinter 144)Best for: a bright, airy interior that's easy to keep clean.
-

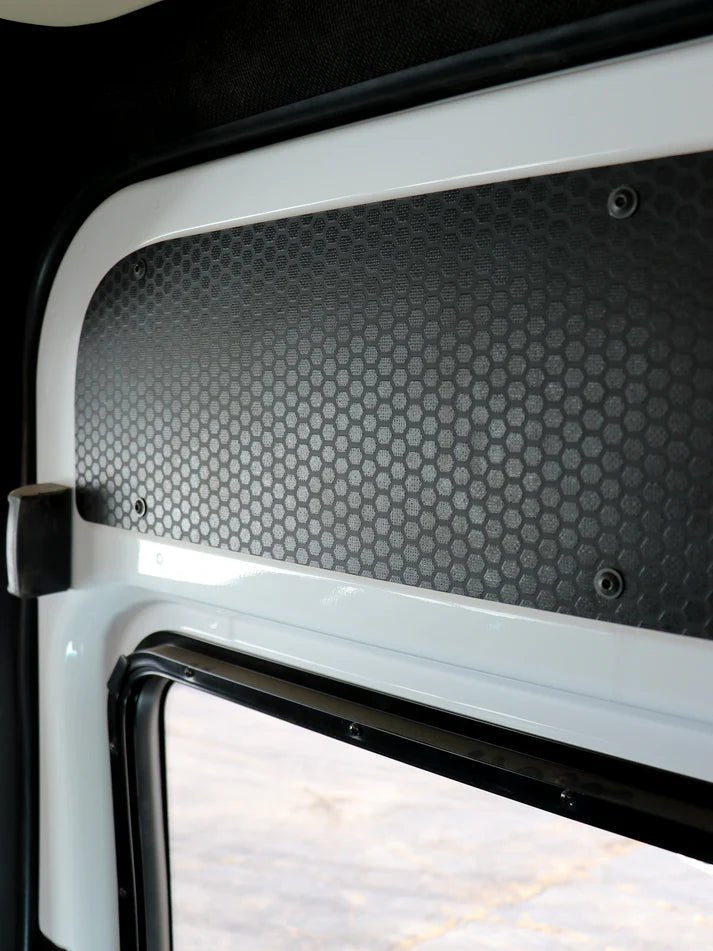

Black Hex
Shop kits with Black Hex lowersTextured black phenolic over Baltic birch, for the parts of the van that take a beating.
Face: durable textured phenolic; smooth phenolic back
Core: Baltic birch plywood
Arrives: finished
Care: damp cloth or mild cleaner; fingerprints and dust show; wax the raw edges
Used for: lower wall panels under any upper material, and cabinets“The Black Hex panels have taken quite a few hits from strollers and bikes and still are without a scratch.” (Featherbuilt customer)
Compare panel materials
| Property | Natural Plywood | Bamboo | White Laminate | Black Hex |
|---|---|---|---|---|
| Look | Pale birch; paint, stain or upholster | Warm amber grain | Bright white | Black, textured |
| Arrives | Raw | Raw | Finished | Finished |
| You'll need to finish it | Yes (or upholster) | Yes | No | No |
| Cleaning | Depends on your finish | Easy once oiled | Easiest; household cleaners OK | Easy; shows fingerprints |
| Used for | Walls, ceiling, cabinets | Walls, ceiling | Walls, ceiling, cabinets | Lower walls, cabinets |
| Extra lead time | None | None | +10–12 business days | None |
| Sprinter 144 kit | $3,000 | $4,350 | $4,600 | Lowers from $3,150 |
| Best for | Your own color or upholstery, lowest cost | Warm wood interior | Bright and low-maintenance | Gear, bikes, high-traffic areas |
Prices are for a Sprinter 144 kit with aluminum rails. Not sure yet? Order a sample pack.
Mix and match
-
Bamboo + black rails
Warm wood, crisp lines.
-
Plywood walls, bamboo ceiling
Light walls with a warm ceiling overhead.
-
Any upper, Black Hex lower
Your look up high, tough panels down low where boots, bikes and bins hit. Available on every Wall and Ceiling kit.
-
White + aluminum rails
Bright and clean.
Cabinet finishes
Standard finishes, order online. Our cabinets are built from ½″ plywood in the same materials as our panels, so walls and cabinets match or contrast on purpose.
-
Natural Plywood
Ships raw; finish it to match your panels.
-
White Laminate
Finished and easy to clean. Ships in 2–3 weeks.
-
Custom laminates for custom builds
When we build your interior, the palette opens up. Customers have chosen Winter Sky, Green Slate, blue, light blue, Fossil Grey, slate and more.
Winter Sky is a soft blue-green that shifts with the light, from sage in the shade to blue-gray in the sun. Here it is in four different vans.
-
Frost · Sprinter 144
Winter Sky galley and bench.
-
Pebble · Sprinter 144
Winter Sky galley and upper cabinets.
-
-
Nessa · Sprinter 144
Winter Sky lower cabinets.
Rails and hardware
Strut rails. Lightweight aluminum strut channel, CNC-drilled to line up with your van's mounting points. Nine rails come with a Sprinter 144 Wall and Ceiling kit, in raw aluminum or black powder coat (+10–12 business days).
Strut rail vs L-track. L-track only takes fittings at fixed slots about an inch apart. Strut channel is open along its whole length, so you can mount anywhere with standard ¼-20 bolts, hooks and clips.
-
Hooks and accessories
Hooks, nets and bungees clip onto the rail anywhere and move whenever you want.
-
Rivet nuts
Threaded inserts that turn thin sheet metal into solid anchor points. Install and remove parts as often as you like without damaging the van.
-
Channel nuts
¼-20 nuts that slide into the rail and lock where you tighten them, for cabinets, benches, shelves, hooks and clips.
Bamboo and natural plywood ship raw. Finish them your way.
Raw panels let you choose the look and the protection. A few hours of finishing before install is all it takes.
- Bamboo: hard wax oil, tung oil, or a furniture-grade wood oil. Re-oil or re-sand later.
- Natural plywood: sand lightly, then paint, clear coat, stain and poly, or hard wax oil. Or upholster it.
- Keep raw panels dry until they're finished.
See it in person
Wood and laminate look different in every light. Get a sample pack with each panel material, both rail finishes, a rivet nut and a channel nut before you order.
Materials FAQ
How thick are the panels?
Every wall and ceiling panel is ¼″ (6 mm). Cabinets are built from ½″ plywood.
Do bamboo and natural plywood panels come finished?
No. Bamboo and natural plywood ship raw so you can choose the finish. White Laminate and Black Hex arrive finished.
Can I upholster the natural plywood, or do I need to coat it?
Both work. Natural plywood is a good base for fabric or felt. Any face you leave exposed needs a finish: paint, clear coat, stain and poly, or hard wax oil.
Which material is the most durable?
Black Hex. Its textured phenolic face is made for high-traffic areas, which is why we offer it as a lower panel under any upper material.
Can I mix materials?
Yes. Every Wall and Ceiling kit can be ordered with Black Hex lower panels and Bamboo, Natural Plywood, or White Laminate above.
What's the difference between aluminum and black rails?
Only the finish. Both are the same aluminum strut rail. Black powder coat adds 10–12 business days.
Do I need to drill holes in my van?
A few. Most rivet nuts go into the van's factory holes; some of those get opened up, and a few new holes are drilled. Our template marks every one, so there's no measuring.
What can I mount to the rails?
Cabinets, shelves, benches, beds, hooks, bags and clips. Anything that takes ¼-20 hardware can go anywhere along the rail.
How is strut rail different from L-track?
L-track only accepts fittings at fixed slots. Strut channel is open along its full length, so you can position things exactly where you want them, using standard ¼-20 hardware.
How long until my kit ships?
Wall and Ceiling kits are made to order and ship in 4–6 weeks. White Laminate panels or black rails add 10–12 business days.
How do I clean the panels?
White Laminate takes household cleaners. Black Hex needs only a damp cloth or mild cleaner. Bamboo and natural plywood clean according to the finish you apply.
Can I see the materials before I buy?
Yes. Order a sample pack, or visit our Denver shop by appointment.
Do you offer other cabinet colors?
Online, our cabinets come in Natural Plywood, White Laminate and Black Hex. For custom builds we offer custom laminate colors, including Winter Sky, Green Slate, blue, light blue, Fossil Grey and slate. Get in touch to plan one.
See them in real vans
-
Sprinter 144
Winter Sky galley, white walls.
-
Sprinter 170 Extended
Bamboo panels, black rails.
-
Sprinter 144
Natural plywood walls, bamboo ceiling.
-

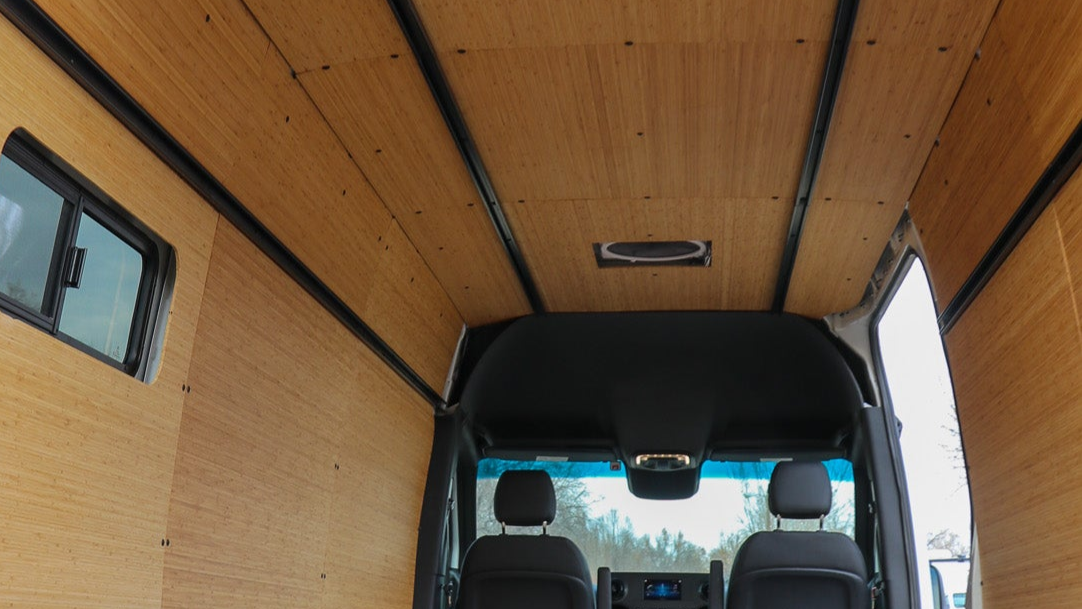

Sprinter 170
Bamboo walls and ceiling, black rails.
