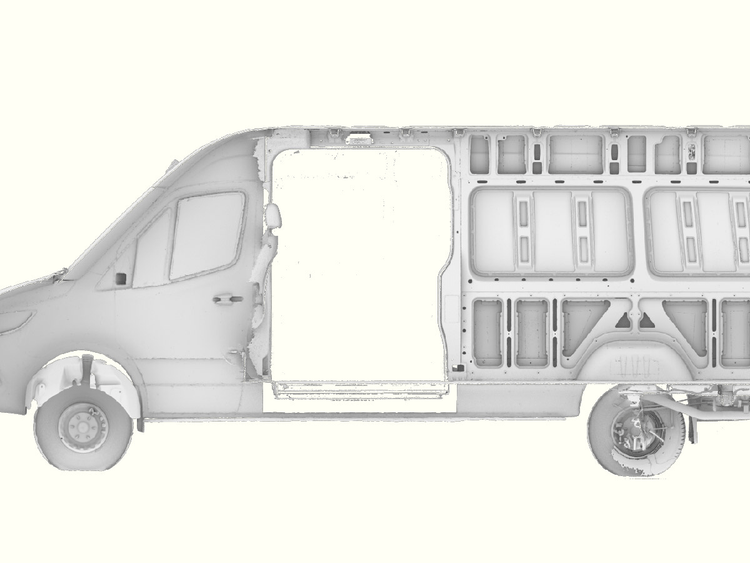

Featherbuilt planning kits are printable, to-scale drawings of the most popular camper conversion vans. Each kit is a 7-page PDF at 1:24 scale (1/2" = 1'-0") with a 12" grid and a shaded build area from the rear doors to the B-pillar: floor plan, both interior walls, rear section, reflected ceiling plan, roof plan and a van details page. The Ford and Ram kits are drawn from factory 3D CAD data, and the Sprinter kits from a 3D scan of a real van.

Mercedes Sprinter: 144 High Roof, 170 High Roof. Ford Transit: 148 High Roof, 148 EXT High Roof, 148 Mid Roof. Ram ProMaster: 136 High Roof, 159 High Roof, 159 EXT High Roof.

Print on US Letter, landscape, at 100% so the scale stays true; each grid square is 12" in the van. Use it for a DIY build or to plan with a conversion shop, and measure your own van before you build, since model year, trim and options change real dimensions.
