Sprinter 144 High Roof Planning Kit

This planning kit download [PDF] has everything you need to start planning your Sprinter 144 High Roof van conversion project. Whether you are doing a complete DIY build or bringing your van to a professional conversion shop, this set of scaled diagrams will help you conceptualize, visualize and organize all of your van hopes and dreams.

Included in this planning kit:

Mercedes-Benz Sprinter 144 High Roof Drawings

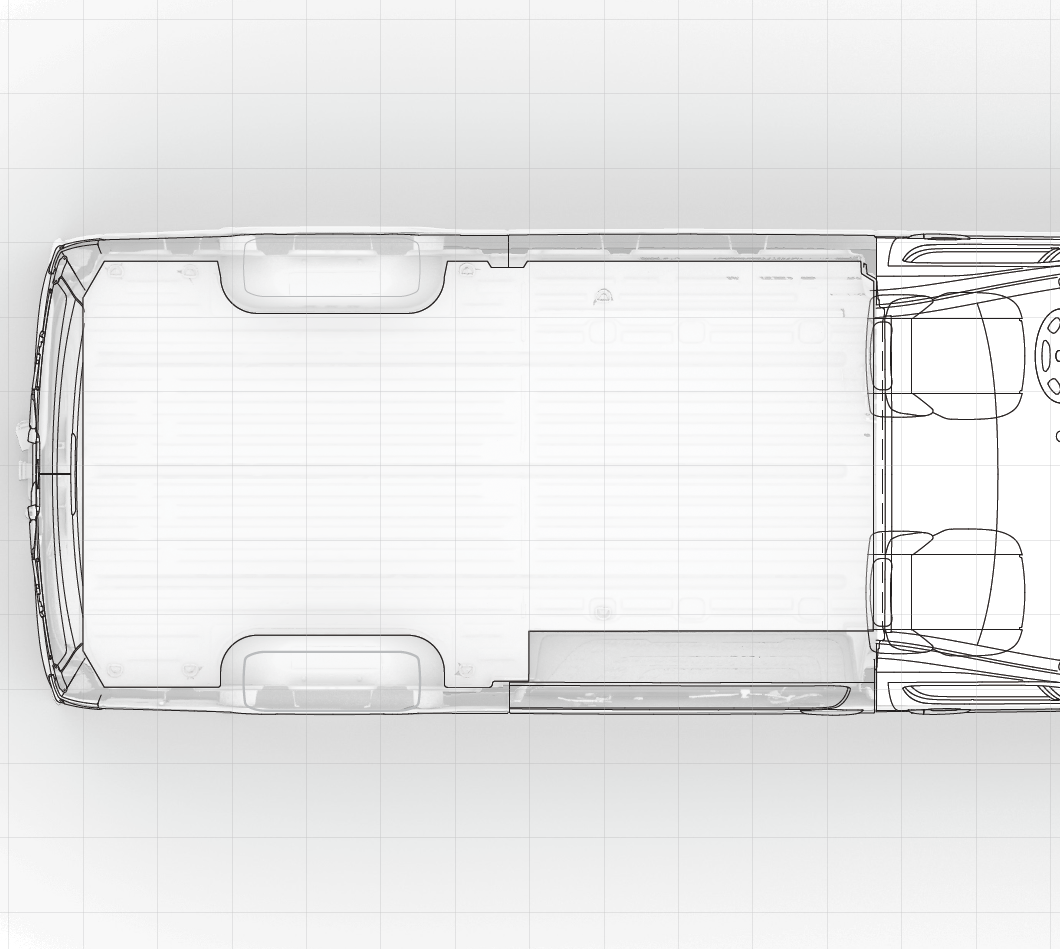

• Floor Plan

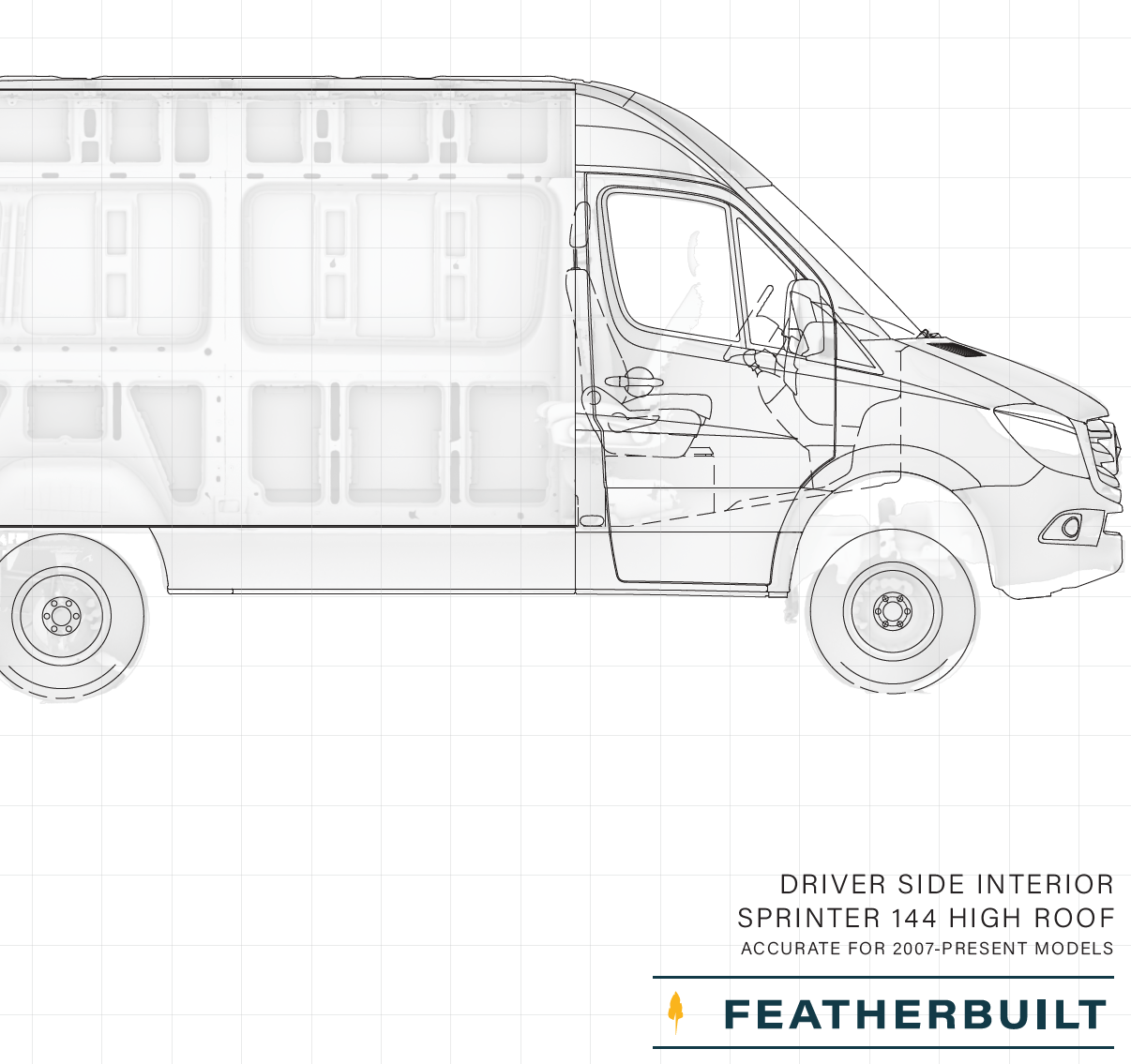

• Driver Side Interior
• Passenger Side Interior
• Rear Section View

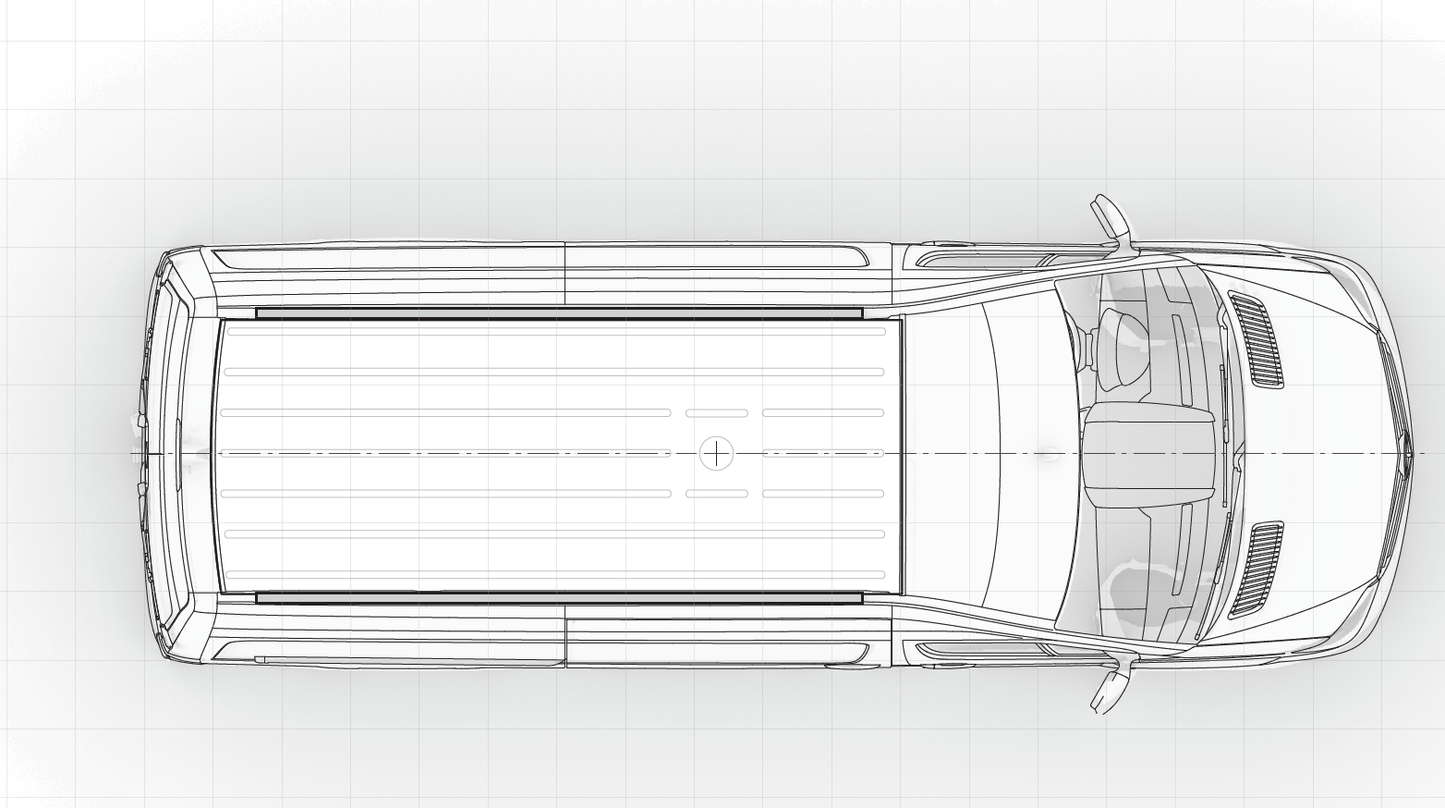

• Roof Plan

This PDF is intended to be printed on 8.5” x 11” Letter size paper. Print as many copies as you need!

You will also gain access to all future versions of this planning kit. Updates will be automatically emailed to the address you provide when checking out. Future updates are planned to include additional specifications, component locations and other considerations for planning a van conversion.

The drawings in this kit represent measurements taken by hand and developed via 3D scanning and CAD modeling and should be used for planning purposes only. Always check your own vehicle for accuracy. Always measure twice before cutting.
