Tools for a DIY Van Build: The List From the Featherbuilt Shop
On this page
This is the tool list we'd hand a friend starting a van build. It assumes you're buying most of your big components (windows, fan, heater, electrical, cabinets) rather than building them from scratch, so it skips the full wood shop and covers what it takes to get those parts into a van properly.
It's organized by build phase. If you haven't seen how we break a build into phases, start with The Six Phases of Building Out Your Van. Questions about any of it? Reach out to us.
The starter kit
You'll use these in every phase. Several are worth owning anyway if you own a van.
Trim panel tool kit
Little plastic pry tools for popping off factory panels, clips and door gaskets without scratching paint or snapping tabs. Phase one is mostly removing things, and this makes it painless.
Torx bit set
Plenty of the factory bolts on seats, belts and trim are Torx. You'll need them to strip the van, and you'll want them again for the life of the vehicle.
Socket set
Same story. Seats, swivels, brackets and battery terminals all want a socket. Good for any vehicle owner.
Cordless drill

Pilot holes, opening up factory holes, driving every screw in your panels and rails. You'll use it the whole build, so get a good one and a spare battery.
Drill bit set
A basic set covers pilot holes and match-drilling. When you're drilling near the van's outer skin, choke up or use a short bit so you don't poke through.
Driver bit set
The common screw heads in one impact-rated case, so whatever screw comes in the box, you can drive it.
Tape measure and Sharpies
Measure twice, mark once. Sharpies are for hole locations, wire labels and notes to future you.
Safety glasses
Metal shavings fly when you drill and cut overhead. Get clear lenses: the inside of a van shell is dim.
Rivnuts
Rivnuts are threaded inserts that give you solid mounting points in the van's sheet metal. They're the foundation of our rail system, and most of phase two hangs on them. The first few are the hardest, so practice before you drill into your van.
Featherbuilt Rivnut Practice Kit
Five 1/4-20 rivnuts and screws for practice shots on scrap metal. Cheap insurance before the real thing.
25/64" step bit

This opens up the van's factory holes to fit the rivnuts that come with our kits. 25/64" (or 9mm) is the sweet spot for 1/4-20 rivnuts.
Rivnut setter: pick one
- Hand lever setter: the easiest to get right. The long handles give you feel and leverage, and there's no battery or hose to manage.
- Pneumatic setter: the best option if you have a compressor around. Fast and consistent once it's dialed in.
Whichever you choose, make sure it has a 1/4-20 mandrel to fit Featherbuilt hardware.

Cutting holes in your van
Windows, roof fan, AC, shore power inlet, heater: phase two is when the holes get cut, because some of this is nearly impossible to do once walls are up. It's the scary part. With the right setup it's very doable.
Jigsaw with metal-cutting blades
Drill a starter hole in each corner of your cutout, then follow your line with a fine-tooth metal blade. Go slow and let the blade do the work.
Blue painter's tape
Tape around the cutout before you mark it. Your line shows up clearly, and the tape protects the paint from the jigsaw's foot.
Rust-Oleum self-etching automotive primer
Every new hole or cut exposes bare metal. Give each edge a coat of primer and let it dry before anything goes in, whether it's a rivnut or a window.
Installing Featherbuilt wall and ceiling kits
If you've got the starter kit and the rivnut tools above, you're almost there. Our wall and ceiling panel kits bolt onto rivnuts in the factory holes, so there's very little cutting.

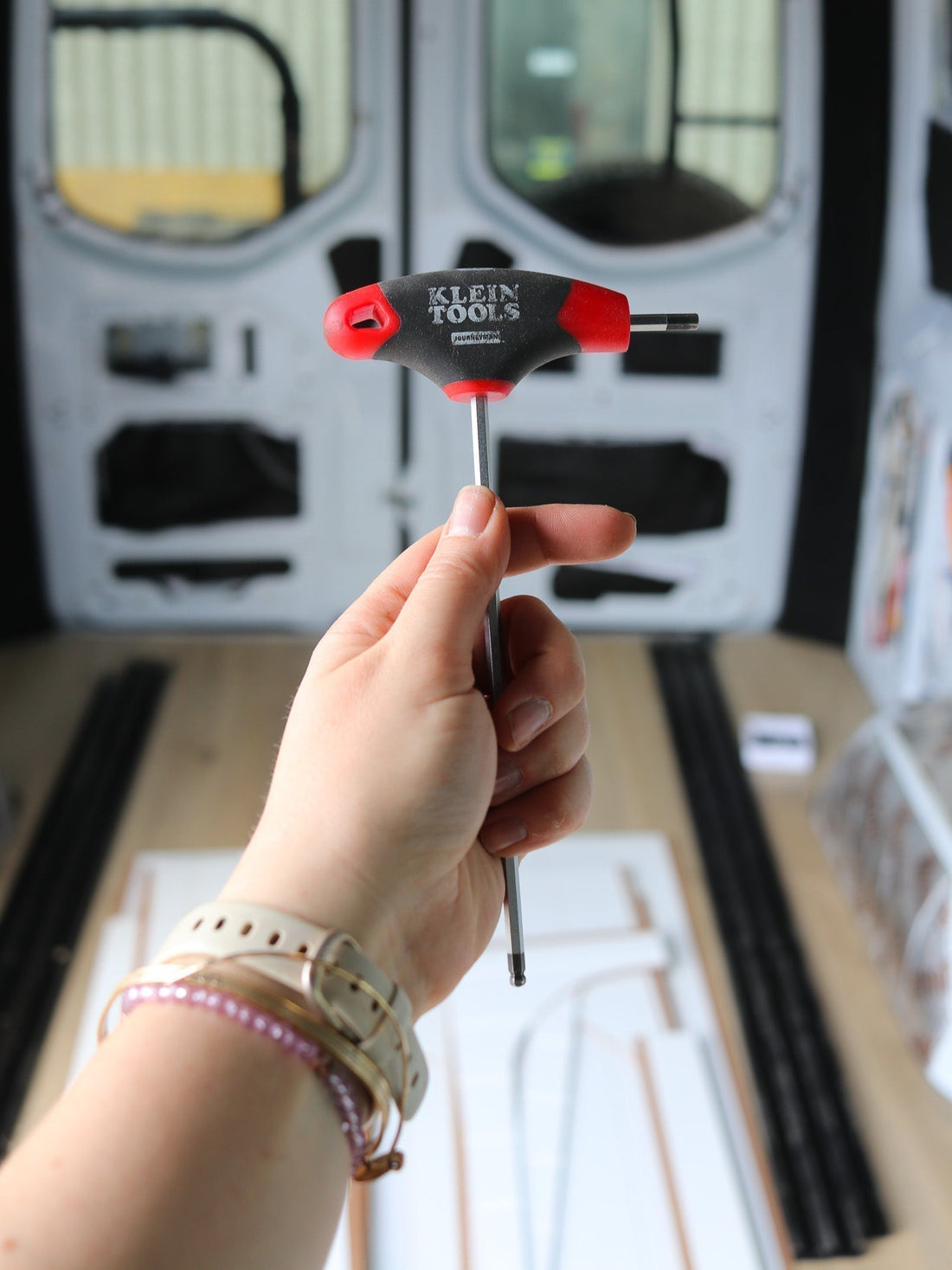

5/32" T-handle wrench

For tightening all the 1/4-20 screws. We include one in your kit, but a second one with a comfortable grip is worth it when you're doing a whole ceiling.
Installing Featherbuilt cabinets
Our cabinets go together with Cabineo connectors, so assembly takes one bit.
4mm hex bit
Cabineo connectors tighten with a 4mm hex. Put one in your drill and the cabinet boxes pull together square. Take it easy on the clutch setting.
Wiring your electrical system
Even with a pre-built electrical system, you'll be running 12V and 120V wire in phase two and making connections later. These four tools make the difference between connections you trust and ones you chase down on the road.
Auto-adjusting wire stripper
Squeeze and it strips clean, whatever the gauge. No nicked strands, no guessing which notch.
Klein ratcheting crimper
The ratchet won't release until the crimp is complete, so every terminal gets the same solid squeeze.
Heat gun
For shrinking heat-shrink tubing and terminals so connections are sealed against moisture and vibration.
Multimeter
Check voltage, continuity and polarity before you power anything up. It's also the tool you'll reach for whenever something stops working.
The whole list
- Trim panel tool kit, Torx bits, socket set
- Cordless drill, drill bits, driver bits
- Tape measure, Sharpies, safety glasses
- Rivnut practice kit, 25/64" step bit, rivnut setter (hand lever or pneumatic)
- Jigsaw, metal blades, blue tape, self-etching primer
- 5/32" T-handle wrench (wall and ceiling kits)
- 4mm hex bit (cabinets)
- Wire stripper, crimper, heat gun, multimeter
That's the kit. Got a tool question we didn't cover? Reach out to us.
