Get creative with your van's water storage! This flexible undercarriage tank fits perfectly under your Transit van.
Compatible on passenger or driver side, and works with factory Transit Trail running boards.

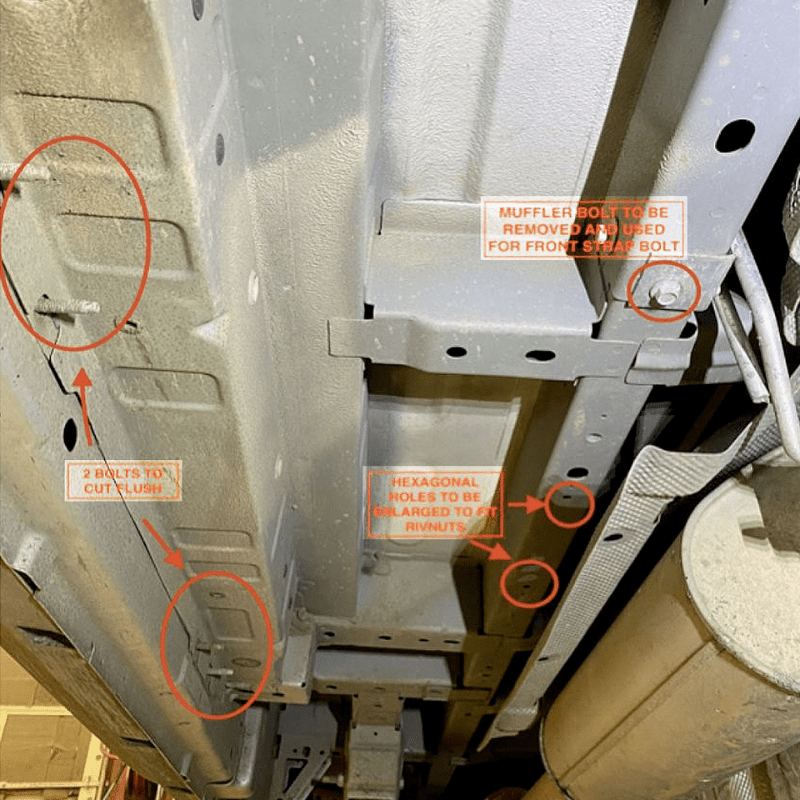

This tank is designed to slot under the Ford Transit’s undercarriage. Three laser-cut stainless steel mounting straps and all required hardware are included. It fits on the passenger side under the slider door, or on the driver side next to the fuel tank — giving you placement flexibility depending on your build layout. Suitable for fresh or grey water.
Built from food-grade, BPA-free polyethylene and certified to IAPMO TS-4 / RVIA standards. Made in the USA by NW Conversions.
Fits Transit Trail with factory running boards.
Fits:
Now confirmed: all Transit wheelbases
∙ Ford Transit 130", 148″, & 148″ EXT (2014–present)

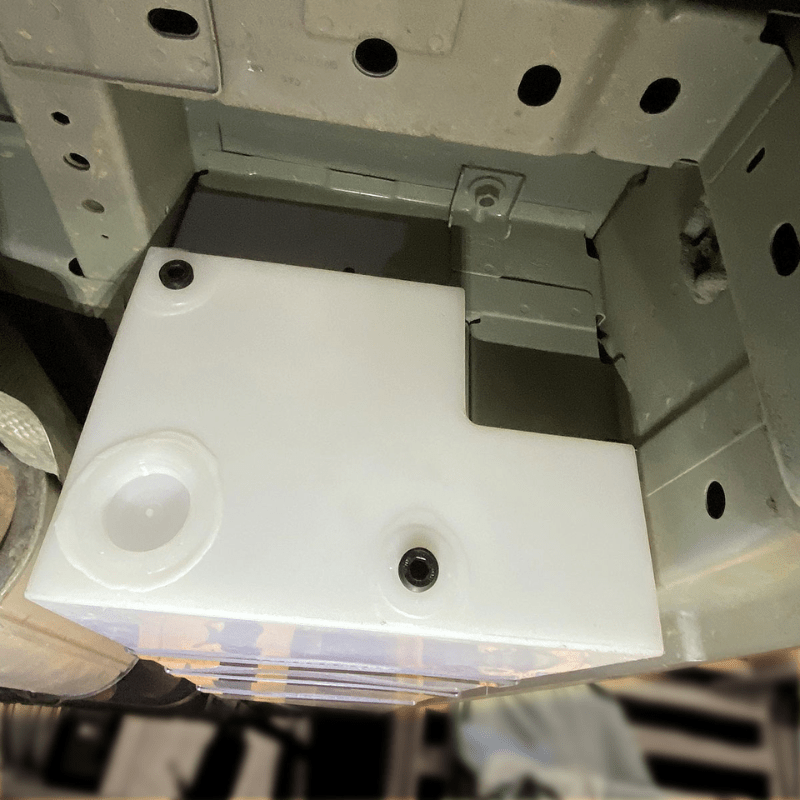

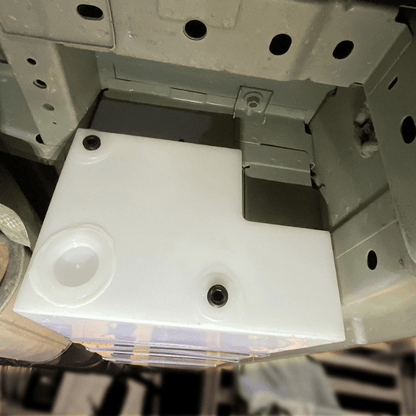

∙ Mounts on passenger side (under slider) or driver side (next to fuel tank)
Specs:
Weight: 14 lbs
| Capacity | 16 gallons |

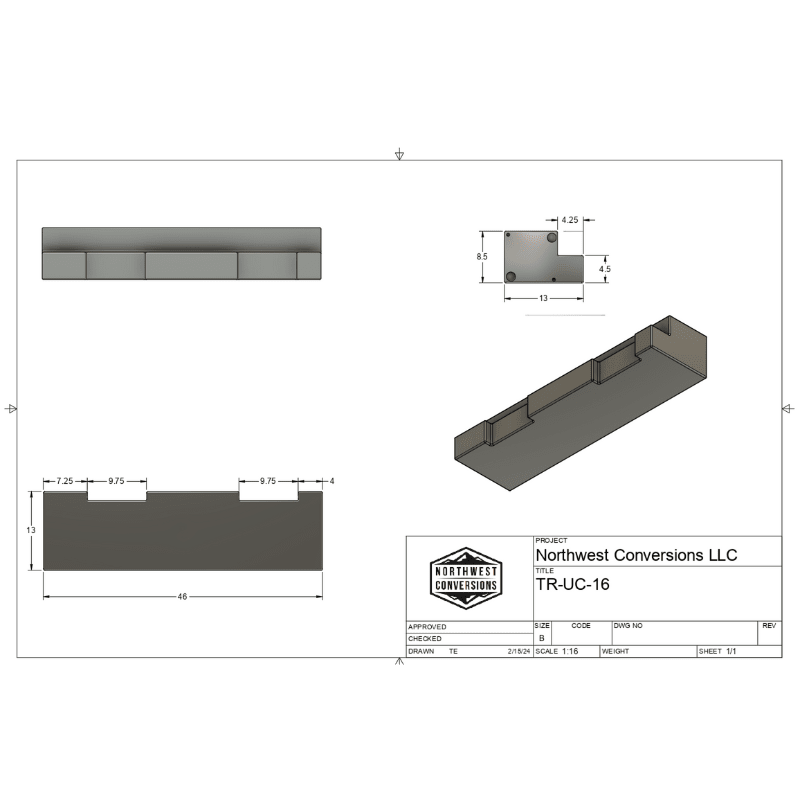

| Dimensions | 48″ L × 13″ W × 8.5″ H |
| Material | BPA-free, food-grade polyethylene |
| Certifications | IAPMO TS-4 / TEI Listed / RVIA Approved |
| Made in | USA |
| System type | Non-pressurised — must be vented |
| Hardware included | (3) stainless steel laser-cut mounting straps, 3/8″ hardware, 3/8″ rivnuts. Rivnut tool required — not included. |
| Running board compatibility | Fits Transit Trail with factory running boards. Also compatible with Owl running boards. May require minor bracket modification with other aftermarket boards. |
Ports (rear-facing):
∙ (1) 1.5″ NPT + (2) 1/2″ NPT on rear-facing end

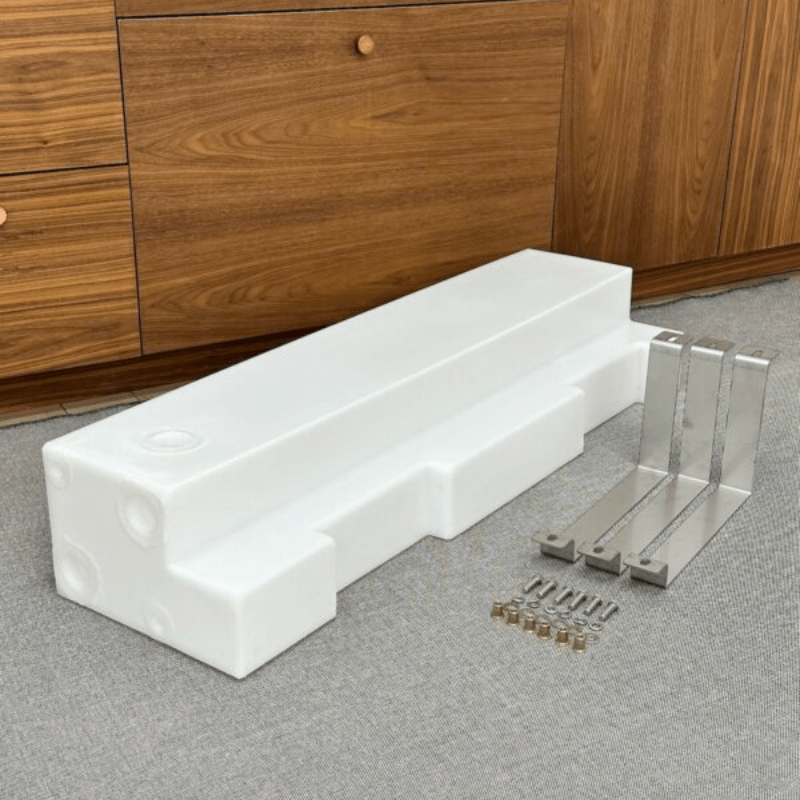

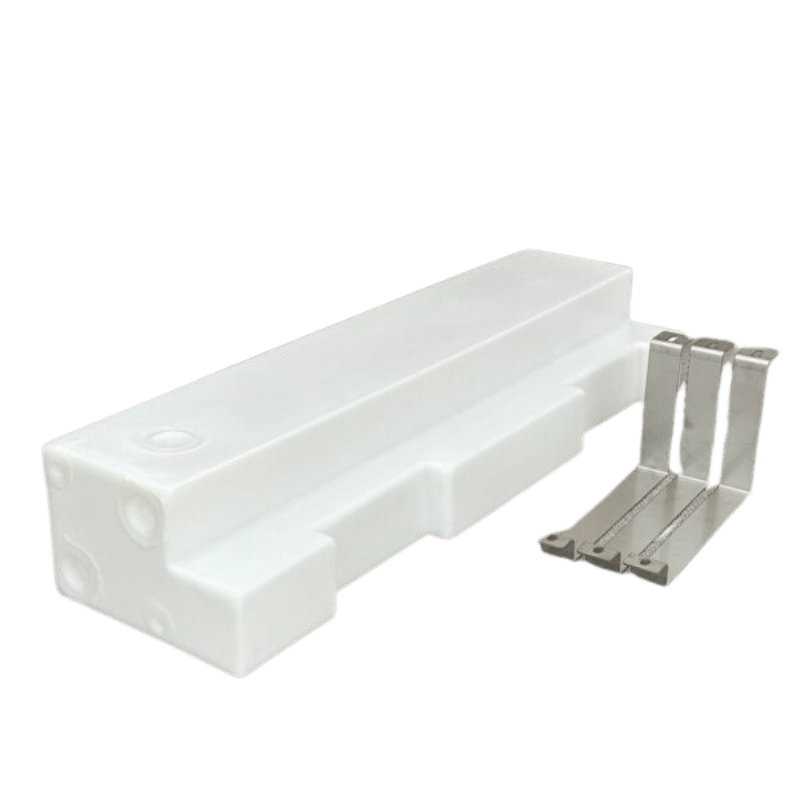

What’s Included: Tank, (3) stainless steel laser-cut mounting straps, stainless hardware, rivnuts. Rivnut tool required — not included.
Tank Compatibility:
