28 Gallon ProMaster Wheel Well Water Tank - Center

Transform the often-wasted space around your ProMaster van's wheel well into valuable fresh water storage!

28 Gallon ProMaster Wheel Well Water Tank

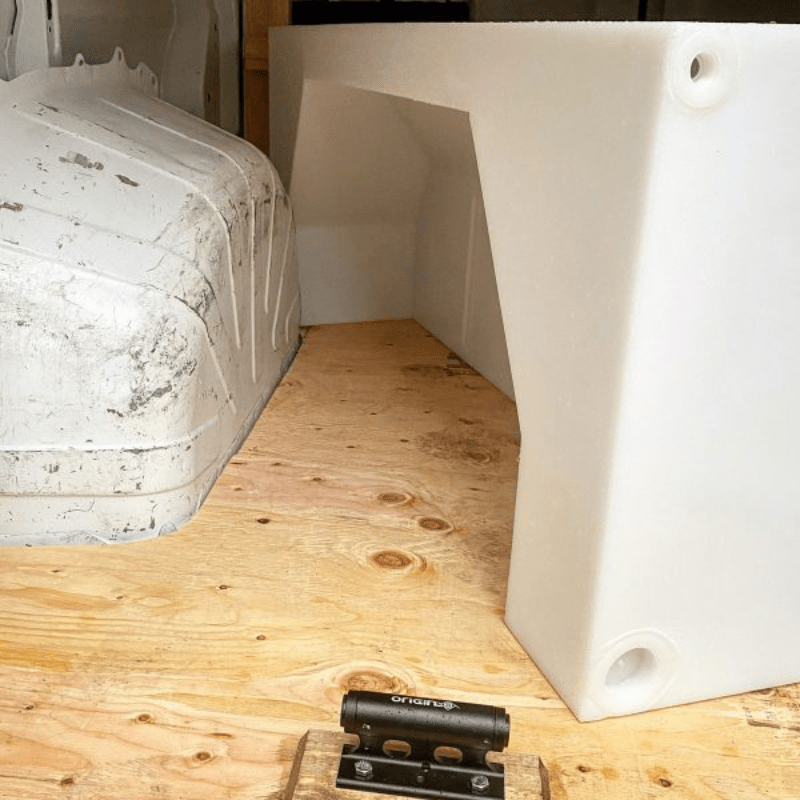

Designed specifically for the Ram ProMaster, this 28-gallon wheel well tank contours perfectly over the wheel housing, allowing you to build your bed or cabinetry flush against the wall without losing interior volume.

This tank is a direct fit for our Wheel Well Water Cabinet!

Constructed in the USA from durable, BPA-free food-grade plastic, this tank is reversible—it can be installed on either the driver or passenger side. It features multiple NPT ports for flexible plumbing configuration, ensuring a clean and leak-free water system for your sink, shower, or outdoor wash station.

Key Features:

• Wheel Well Design: "Centered" design sits directly over the wheel hump, utilizing dead space to keep your van’s center of gravity low.

• Universal Placement: Can be mounted on either the Driver or Passenger side of the vehicle.

• Safe & Certified: Made from BPA Free Food Grade Plastic for safe drinking water.

• Customizable Fittings:

  • (2) 1/2” NPT ports (open and ready to use).

  • (2) 1.5” NPT ports on ends (Note: These are spun closed and must be drilled out if used).

  • (1) 1.5” NPT top port (Note: Spun closed, needs drilling) perfect for gravity fill or water level sensors.

• Made in the USA: High-quality molding you can rely on for off-grid travel.

Vehicle Compatibility:

• Ram ProMaster: Designed for a near-perfect fit over the factory wheel well.

• Other Vehicles: Can be used in box trucks, trailers, or other custom builds where dimensions allow.

Specs:

• • Capacity: 28 Gallons

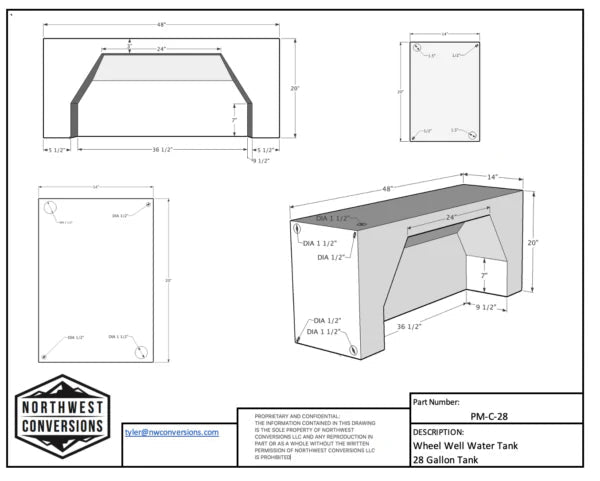

  • Dimensions: 48” (Length) x 14” (Width/Deep) x 20” (Height)

  • Weight: 31 lbs

  • Venting: Gravity fill/vent required (Do not pressurize this tank).
